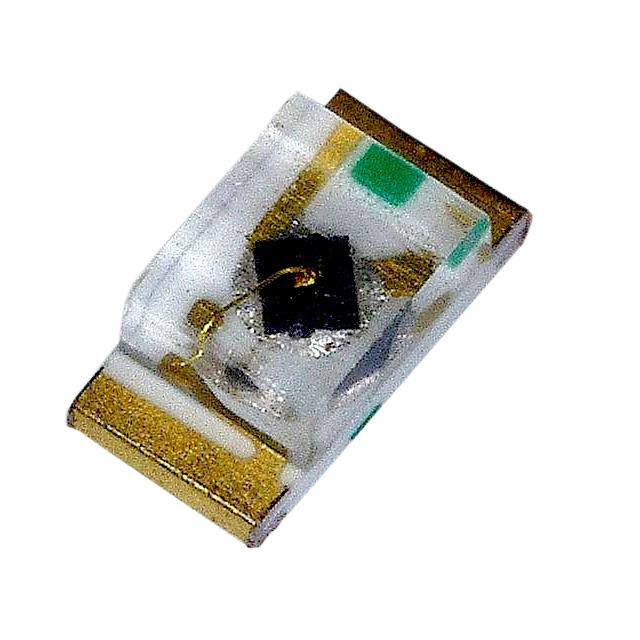

AP0603A-YHR-020MA
ActiveSolidlite
0603 20MA 850NM IR LED
Deep-Dive with AI
Search across all available documentation for this part.
AP0603A-YHR-020MA
ActiveSolidlite
0603 20MA 850NM IR LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP0603A-YHR-020MA |
|---|---|
| Current - DC Forward (If) (Max) | 70 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0603 (1608 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 10 | $ 0.33 | |
| 100 | $ 0.28 | |||
| 500 | $ 0.21 | |||
| 5000 | $ 0.15 | |||
Description
General part information
AP0603A-YHR-020MA
Infrared (IR) Emitter 850nm 1.4V 70mA 1mW/sr @ 20mA 130° 0603 (1608 Metric)
