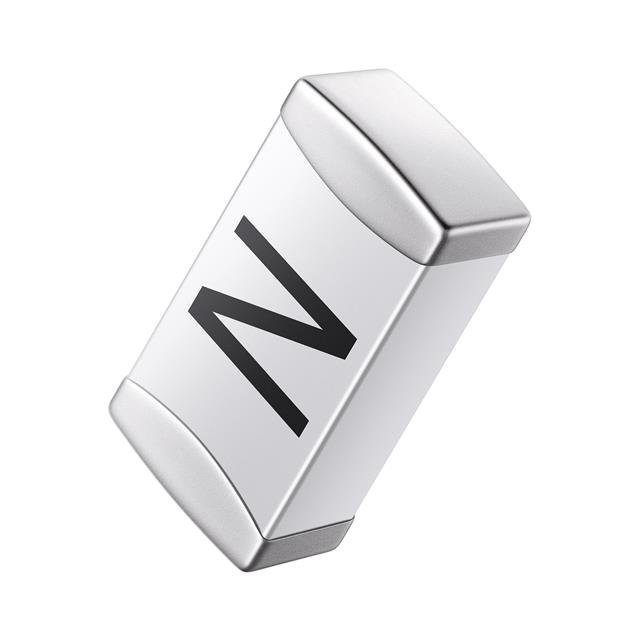

CRU CQ12LV 8A 125V
ActiveConquer
FUSE BOARD MOUNT 8A 125VDC 1206
Deep-Dive with AI
Search across all available documentation for this part.
CRU CQ12LV 8A 125V
ActiveConquer
FUSE BOARD MOUNT 8A 125VDC 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRU CQ12LV 8A 125V |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 8 A |
| DC Cold Resistance | 0.007 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 1.728 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [z] | 0.9 mm |
| Size / Dimension [z] | 0.035 in |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 5 | $ 0.40 | |||
| 10 | $ 0.39 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 5 | $ 0.40 | |||
| 10 | $ 0.39 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 4000 | $ 0.18 | ||
| 8000 | $ 0.17 | |||
| 12000 | $ 0.16 | |||
| 20000 | $ 0.15 | |||
Description
General part information
CRU CQ12LV 8A 125V
8 A AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
