SPX1581T5-L-2-5
ObsoleteSipex
IC REG LINEAR 2.4V 5MA
Deep-Dive with AI
Search across all available documentation for this part.
SPX1581T5-L-2-5
ObsoleteSipex
IC REG LINEAR 2.4V 5MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPX1581T5-L-2-5 |
|---|---|
| Current - Output | 5 mA |
| Current - Supply (Max) [Max] | 5 A |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

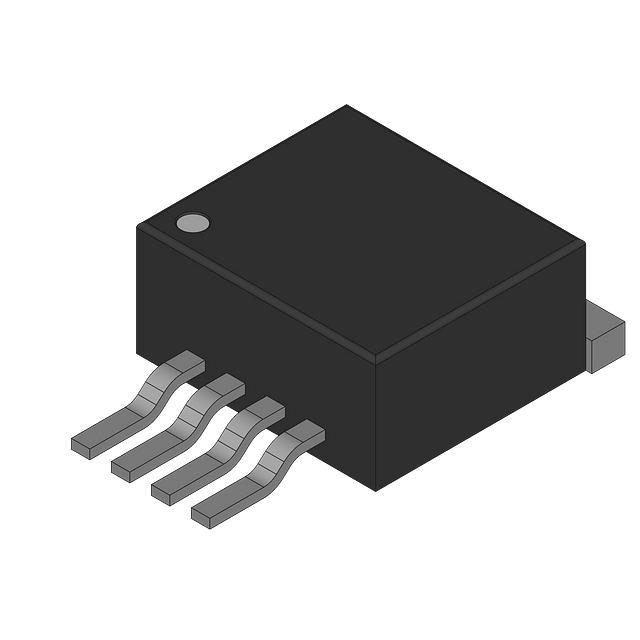

| Package / Case | TO-263-6, TO-263BA, D2PAK (5 Leads + Tab) |
| Protection Features | Over Temperature, Transient Voltage, Current Limit, Reverse Current |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Max) [Max] | 2.6 V |
| Voltage - Output (Min/Fixed) | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1083 | $ 0.29 | |
Description
General part information
SPX1581T5-L-2-5
Linear Voltage Regulator IC Positive Fixed 1 Output 5mA
Documents
Technical documentation and resources
No documents available
