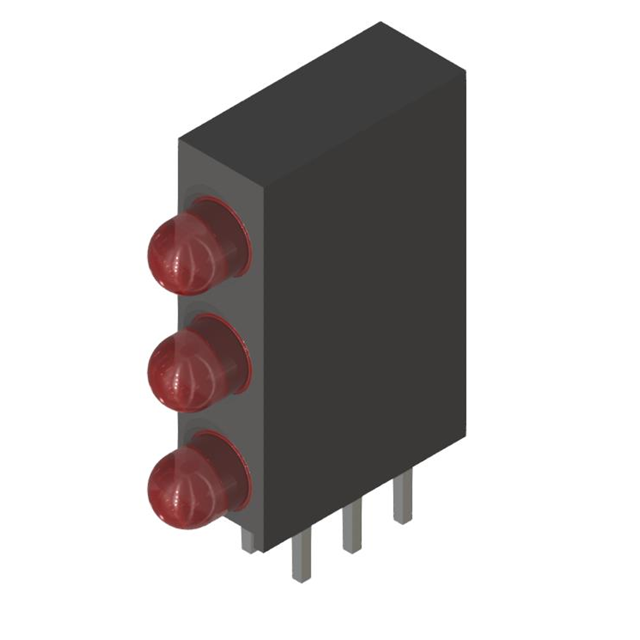

PL317-3R12
ActiveP-tec
LED CBI 3MM 3X1 ORNG-RED RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL317-3R12 |
|---|---|
| Color | Orange-Red |
| Configuration | 3 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 9 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle [custom] | 40 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.11 | |||
Description
General part information
PL317-3R12
LED Circuit Board Indicator LED Circuit Board Indicator 3 High Orange-Red Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
