AK8775
ObsoleteAsahi Kasei Microdevices Corporation

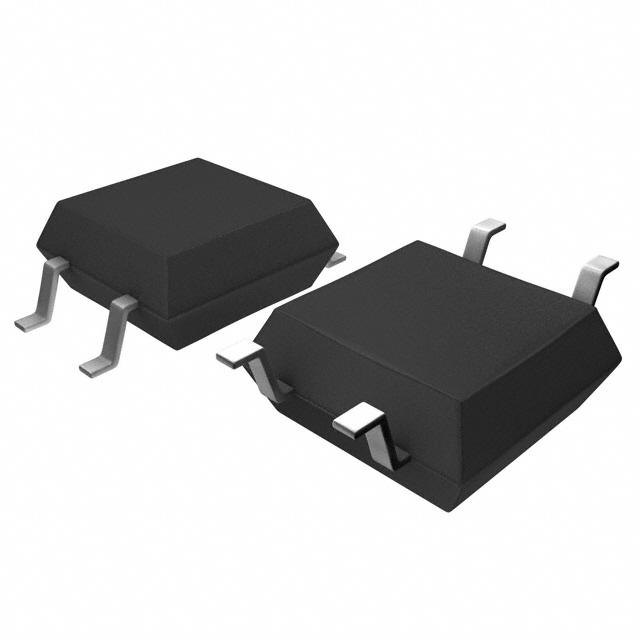

MAGNETIC SWITCH LATCH 4SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK8775
ObsoleteAsahi Kasei Microdevices Corporation
MAGNETIC SWITCH LATCH 4SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK8775 |
|---|---|
| Current - Output (Max) [Max] | 500 µA |
| Current - Supply (Max) [Max] | 210 µA |
| Function | Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Output Type | Push-Pull |
| Package / Case | 4-SMD Module |
| Polarization | South Pole |
| Sensing Range | 4 mT, -4 mT |
| Supplier Device Package | 4-SOP |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AK8775
Digital Switch Latch Push-Pull Hall Effect 4-SOP
