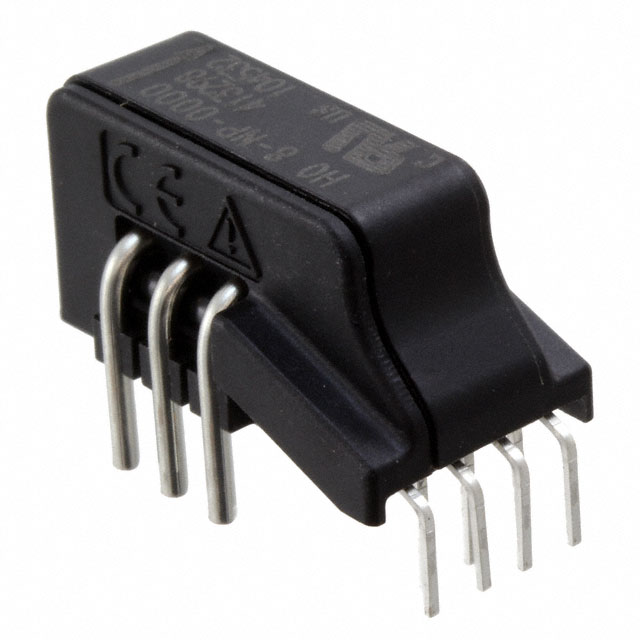

HO 8-NP-0000
ActiveLEM USA Inc.
SENSOR CURRENT HALL 8A AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HO 8-NP-0000
ActiveLEM USA Inc.
SENSOR CURRENT HALL 8A AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HO 8-NP-0000 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 8 A |
| Current - Supply (Max) [Max] | 25 mA |
| For Measuring | AC/DC |
| Frequency | DC ~ 250kHz |
| Linearity | 0.5 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 3.5 µs |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.68 | |
| 10 | $ 10.04 | |||
| 25 | $ 9.51 | |||
| 80 | $ 8.19 | |||
| 600 | $ 7.66 | |||
| 1200 | $ 7.26 | |||
Description
General part information
HO 8-NP-0000
Current Sensor 8A 1 Channel Hall Effect, Open Loop Bidirectional Module
