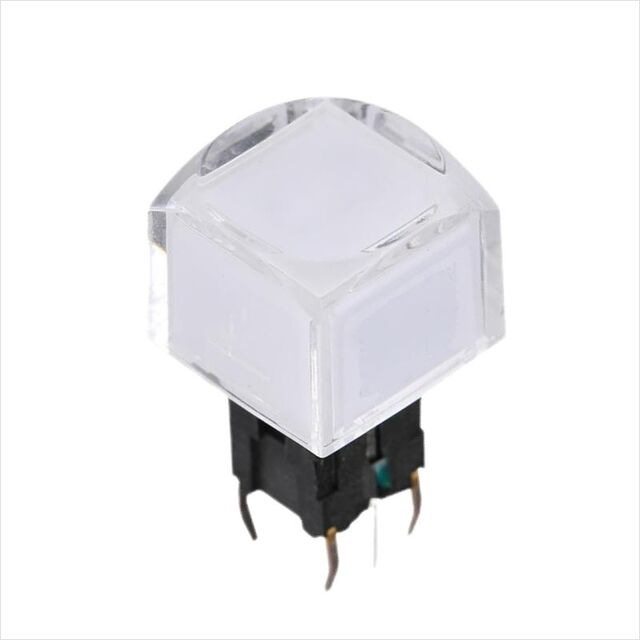

TL2-NNS10WT-R1G1
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL2-NNS10WT-R1G1
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL2-NNS10WT-R1G1 |
|---|---|
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Illuminated |
| Illumination Type, Color | Green/Red, LED |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 180 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.95 | |
Description
General part information
TL2-NNS10WT-R1G1
Tactile Switch SPST-NO Top Actuated Through Hole
Documents
Technical documentation and resources
No documents available
