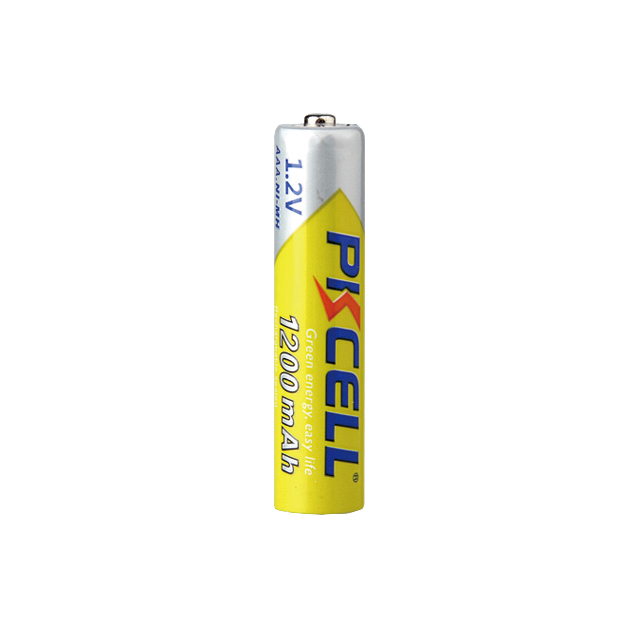

NIMH-AAA1200-4B
ActivePKCELL
BATTERY NIMH 1.2V 1.2AH AAA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NIMH-AAA1200-4B
ActivePKCELL
BATTERY NIMH 1.2V 1.2AH AAA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NIMH-AAA1200-4B |
|---|---|
| Battery Cell Size | AAA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 1.2 Ah |
| Size / Dimension [diameter] | 0.41 in |
| Size / Dimension [diameter] | 10.5 mm |
| Size / Dimension [z] | 44.5 mm |
| Size / Dimension [z] | 1.75 " |
| Standard Charge Current | 120 mA |
| Standard Charge Time | 15 Hrs |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.50 | |
| 12 | $ 5.25 | |||
| 144 | $ 4.50 | |||
Description
General part information
NIMH-AAA1200-4B
AAA 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 1.2Ah
Documents
Technical documentation and resources
