VTK-10005
ActivePremier Magnetics

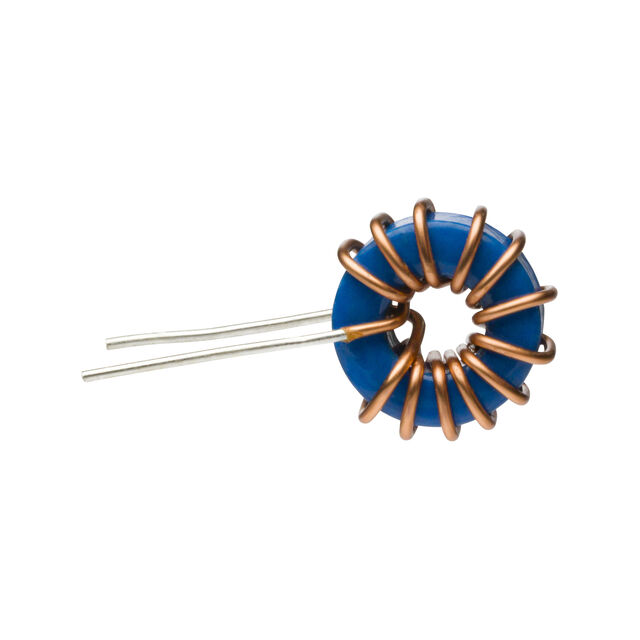

INDUCTOR,SENDUST TOROIDAL POWER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTK-10005
ActivePremier Magnetics
INDUCTOR,SENDUST TOROIDAL POWER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTK-10005 |
|---|---|
| Current - Saturation (Isat) | 10 A |
| DC Resistance (DCR) [Max] | 30 mOhm |
| Height - Seated (Max) [Max] [z] | 1.7 in |
| Height - Seated (Max) [Max] [z] | 43.18 mm |
| Inductance | 100 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Sendust |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 14.00 | |
| 25 | $ 13.00 | |||
| 50 | $ 10.00 | |||
| 100 | $ 8.00 | |||
| 250 | $ 7.00 | |||
| 500 | $ 6.00 | |||
| 1000 | $ 4.00 | |||
Description
General part information
VTK-10005
100 µH Unshielded Wirewound Inductor 30mOhm Max
