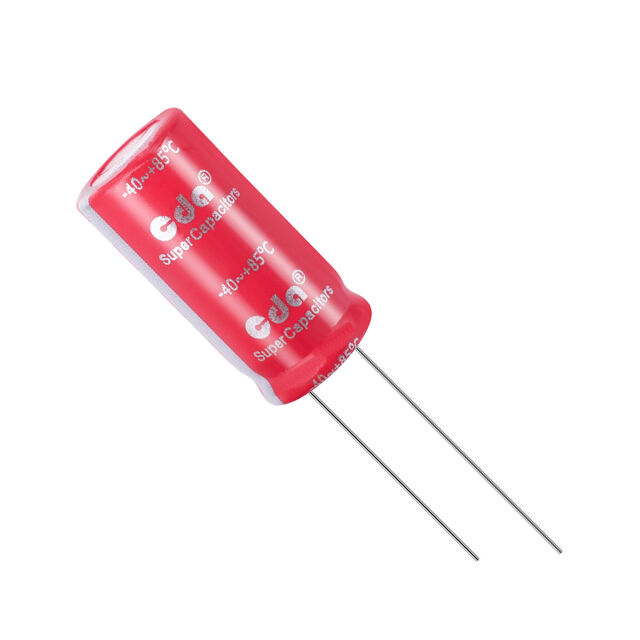

CHW-2R7405R-TWV
ActiveCDA (Zhifengwei Technology)
2.7V 4F 6.3X25 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHW-2R7405R-TWV
ActiveCDA (Zhifengwei Technology)
2.7V 4F 6.3X25 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHW-2R7405R-TWV |
|---|---|
| Capacitance | 4 F |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Height - Seated (Max) [Max] [z] | 1.043 in |
| Height - Seated (Max) [Max] [z] | 26.5 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Termination | PC Pins |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.48 | |
| 10 | $ 2.29 | |||
| 50 | $ 1.82 | |||
| 100 | $ 1.67 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.33 | |||
| 2500 | $ 1.25 | |||
| 5000 | $ 1.20 | |||
Description
General part information
CHW-2R7405R-TWV
4 F (EDLC) Supercapacitor 2.7 V Radial, Can 90mOhm @ 1kHz 1000 Hrs @ 85°C
