LCCA30241-FT1.5
ActiveL-com
N MALE TO BNC MALE USING LMR-200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30241-FT1.5 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 200 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max [Max] | 4 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 44.38 | |
Description
General part information
LCCA30241-FT1.5

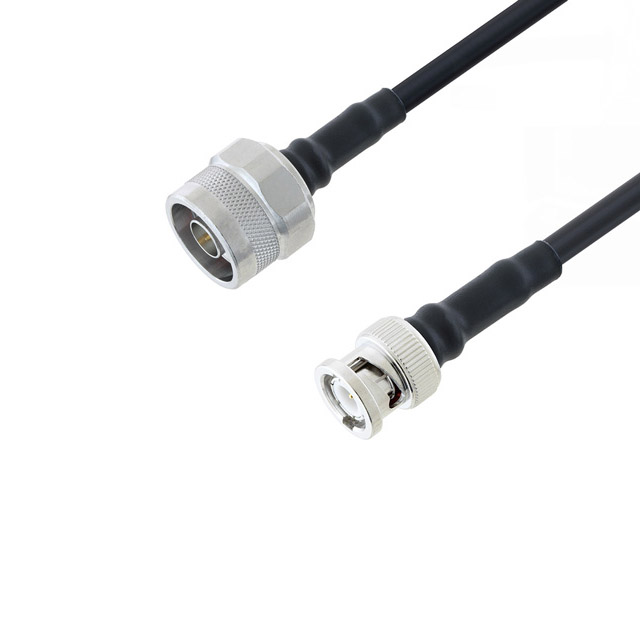

Cable Assembly Coaxial BNC to N-Type LMR 200 18.00" (457.20mm)
Documents
Technical documentation and resources
No documents available
