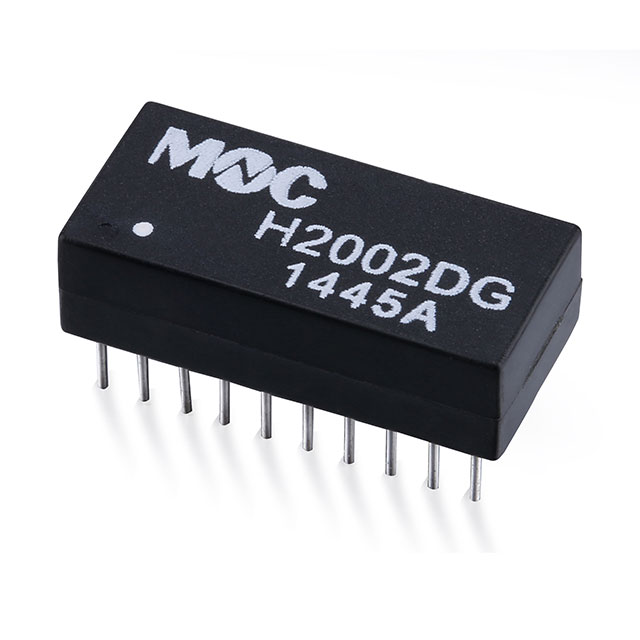

H2002DG
ActiveMentech Technology USA Inc.
DUAL LAN XFMR 10/100 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2002DG
ActiveMentech Technology USA Inc.
DUAL LAN XFMR 10/100 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2002DG |
|---|---|
| Height - Seated (Max) [Max] [z] | 0.266 in |
| Height - Seated (Max) [Max] [z] | 6.75 mm |
| Inductance | 350 µH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 21.7 mm, 0.854 " |
| Size / Dimension [y] | 0.413 in, 10.5 mm |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 2.16 | |
| 10 | $ 1.73 | |||
| 100 | $ 1.08 | |||
| 1000 | $ 0.65 | |||
| 2000 | $ 0.54 | |||
| 4000 | $ 0.43 | |||
| 10000 | $ 0.32 | |||
Description
General part information
H2002DG
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Through Hole
Documents
Technical documentation and resources
