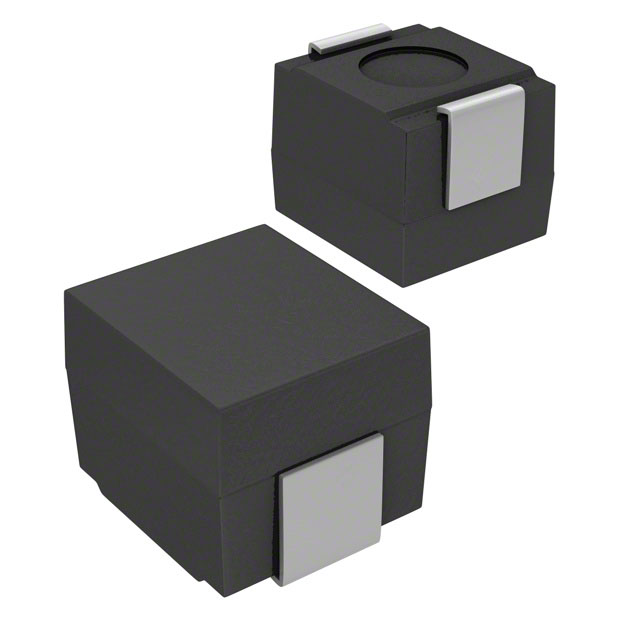

S1008R-122G
ActiveAPI Delevan
FIXED IND 1.2UH 625MA 290MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S1008R-122G
ActiveAPI Delevan
FIXED IND 1.2UH 625MA 290MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S1008R-122G |
|---|---|
| DC Resistance (DCR) | 290 mOhm |
| Frequency - Self Resonant | 95 MHz |
| Height - Seated (Max) [Max] | 2.41 mm |
| Height - Seated (Max) [Max] [z] | 0.095 in |
| Inductance | 1.2 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1008 |
| Q @ Freq | 7.9 MHz, 30 |
| Shielding | Shielded |
| Size / Dimension [x] | 2.92 mm |
| Size / Dimension [x] | 0.115 in |
| Size / Dimension [y] | 2.66 mm |
| Size / Dimension [y] | 0.105 " |
| Supplier Device Package | 2520 |
| Supplier Device Package | 1008 |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 5.55 | |
Description
General part information
S1008R-122G
1.2 µH Shielded Inductor 625 mA 290mOhm Max 1008 (2520 Metric)
