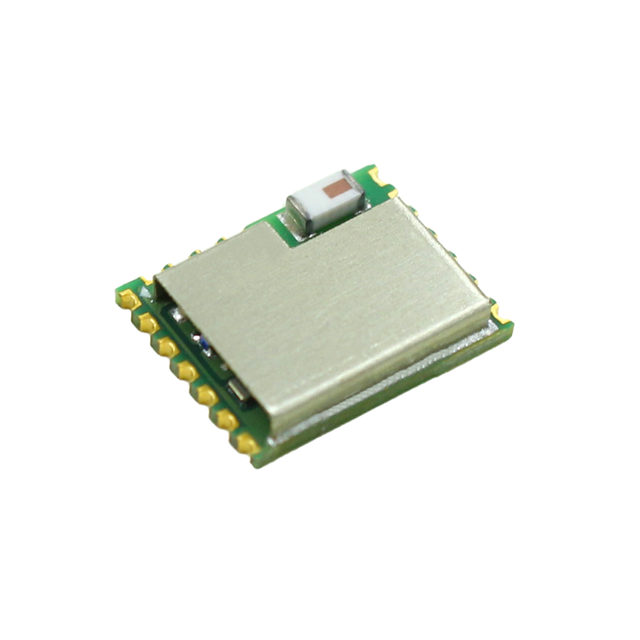

BLE60
ActiveAmp'ed RF Tech
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLE60
ActiveAmp'ed RF Tech
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLE60 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Transmitting | 13.3 mA |
| Data Rate | 1 Mbps |
| Frequency [Max] | 2.4835 GHz |
| Frequency [Min] | 2.4 GHz |
| Memory Size [custom] | 64 kB |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 96 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -92 dBm |
| Serial Interfaces | GPIO, SPI, UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.75 | |
Description
General part information
BLE60
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
