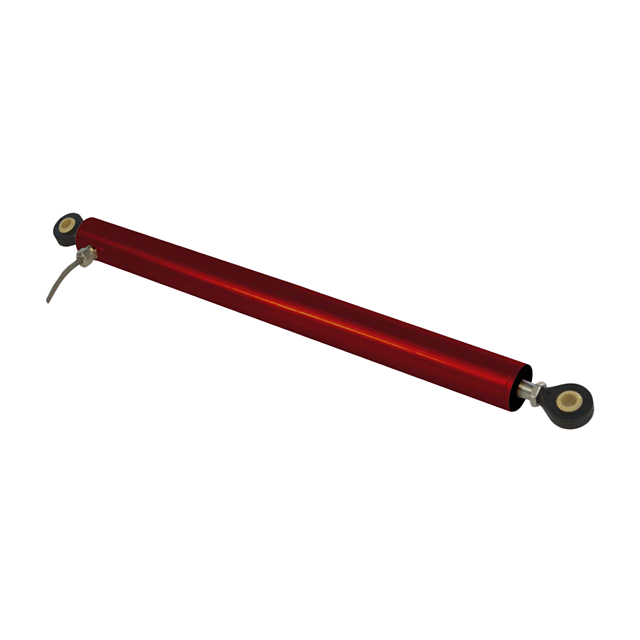

LRE-19-150-R-00-10-A
ActiveAlliance Sensors Group
SENSOR LINEAR 152.4MM CABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LRE-19-150-R-00-10-A |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 152.4 mm |
| Linear Range [Max] | 6 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Linearity | 0.15 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 10 V |
| Output [Min] | 0 mV |
| Package / Case | Cylinder |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Termination Style | Cable |
| Voltage - Supply [Max] | 10 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 428.85 | |
| 5 | $ 411.25 | |||
Description
General part information
LRE-19-150-R-00-10-A
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Cable
