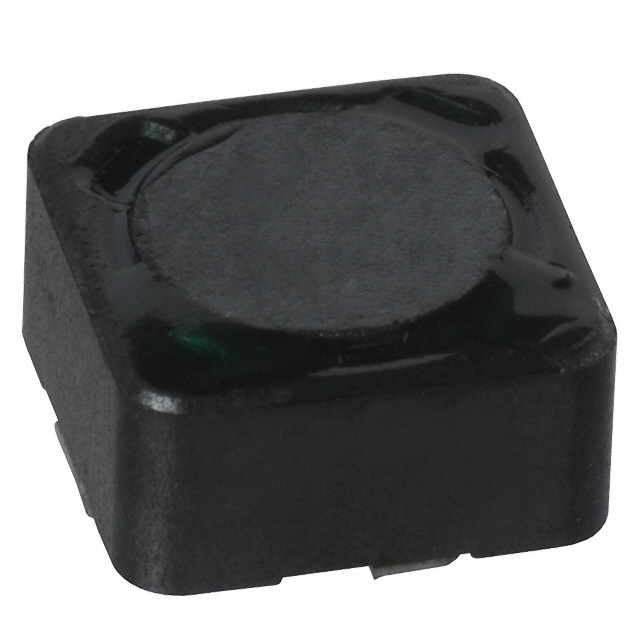

CDRH74NP-181MC-B
ActiveSumida America Components Inc.
FIXED IND 180UH 420MA 980MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDRH74NP-181MC-B
ActiveSumida America Components Inc.
FIXED IND 180UH 420MA 980MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH74NP-181MC-B |
|---|---|
| Current Rating (Amps) | 0.42 A |
| DC Resistance (DCR) [Max] | 980 mOhm |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 180 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [x] | 0.287 in |
| Size / Dimension [y] | 7.3 mm |
| Size / Dimension [y] | 0.287 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 0.98 | ||
| 10 | $ 0.83 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.51 | |||
| Tape & Reel (TR) | 1000 | $ 0.47 | ||
| 3000 | $ 0.45 | |||
| 5000 | $ 0.44 | |||
| 10000 | $ 0.42 | |||
Description
General part information
CDRH74NP-181MC-B
180 µH Shielded Inductor 420 mA 980mOhm Max Nonstandard
