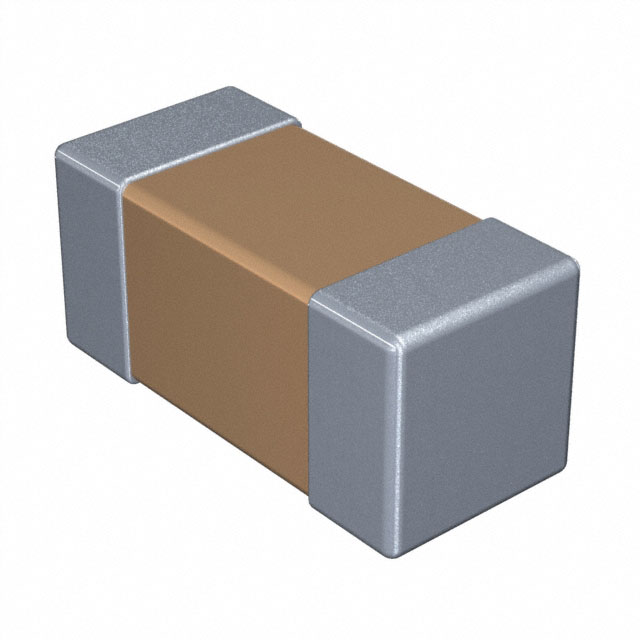

550U104MCAT
ActiveAmerican Technical Ceramics
CAP CER 0.1UF 6.3V 0301
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
550U104MCAT
ActiveAmerican Technical Ceramics
CAP CER 0.1UF 6.3V 0301
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 550U104MCAT |
|---|---|
| Applications | RF, High Frequency, Bypass, Microwave, Decoupling |
| Capacitance | 100000 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0803 Metric |
| Package / Case | 0301 |
| Size / Dimension [x] | 0.86 mm |
| Size / Dimension [x] | 0.034 in |
| Size / Dimension [y] | 0.013 " |
| Size / Dimension [y] | 0.33 mm |
| Thickness (Max) [Max] | 0.43 mm |
| Thickness (Max) [Max] | 0.017 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.60 | |
| 10 | $ 6.59 | |||
| 50 | $ 5.91 | |||
| 100 | $ 5.13 | |||
| Digi-Reel® | 1 | $ 7.60 | ||
| 10 | $ 6.59 | |||
| 50 | $ 5.91 | |||
| 100 | $ 5.13 | |||
| Tape & Reel (TR) | 500 | $ 4.65 | ||
| 1000 | $ 4.31 | |||
Description
General part information
550U104MCAT
0.1 µF ±20% 6.3V Ceramic Capacitor 0301 (0803 Metric)
