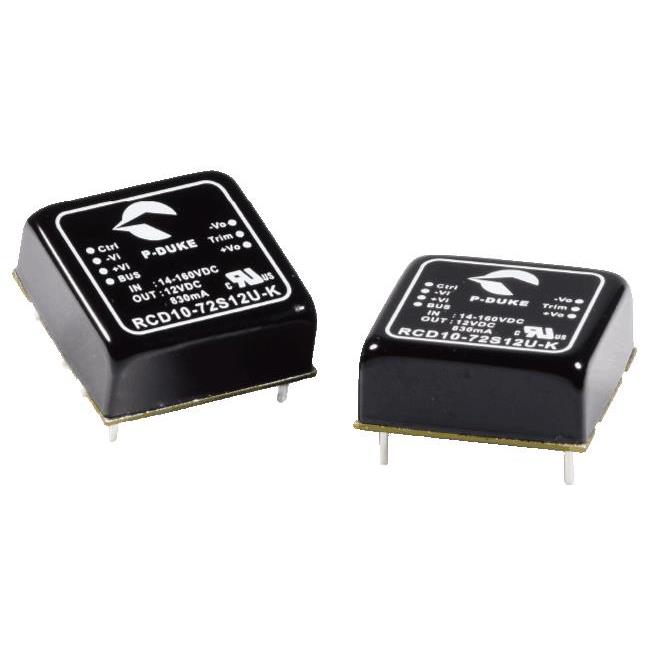

RCD10-72S24U-AK
ActiveP-DUKE Technology
ISOLATED / 10W/ VOUT:24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCD10-72S24U-AK
ActiveP-DUKE Technology
ISOLATED / 10W/ VOUT:24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCD10-72S24U-AK |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 420 mA |
| Efficiency | 87 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 14 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 50.51 | |
| 10 | $ 44.40 | |||
| 25 | $ 42.17 | |||
| 50 | $ 40.57 | |||
| 100 | $ 39.02 | |||
| 250 | $ 37.07 | |||
Description
General part information
RCD10-72S24U-AK
Isolated Module DC DC Converter 1 Output 24V 420mA 14V - 160V Input
