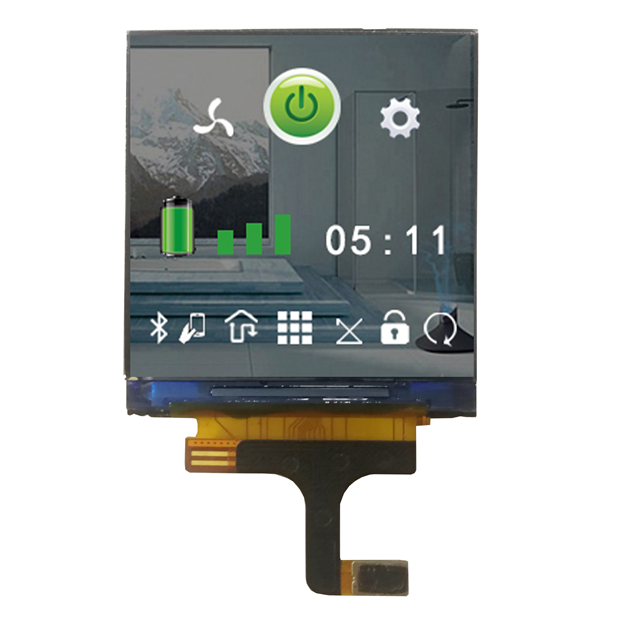

ATM0154B1
ActiveAZ Displays
1.54" IPS LCD 240 X 240
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATM0154B1
ActiveAZ Displays
1.54" IPS LCD 240 X 240
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM0154B1 |
|---|---|
| Background Color | White |
| Backlight | LED |
| Diagonal Screen Size [x] | 1.54 in |
| Diagonal Screen Size [x] | 39.12 mm |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.12 mm |
| Dot Pitch [y] | 0.12 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 240 pixels |
| Dot Size [y] | 0.04 mm |
| Dot Size [z] | 0.12 mm |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Viewing Area [x] | 27.72 mm |
| Viewing Area [y] | 27.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.61 | |
| 80 | $ 8.05 | |||
Description
General part information
ATM0154B1
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) SPI 1.54" (39.12mm) 240 x 240
