4842
ObsoleteInspired LED, LLC

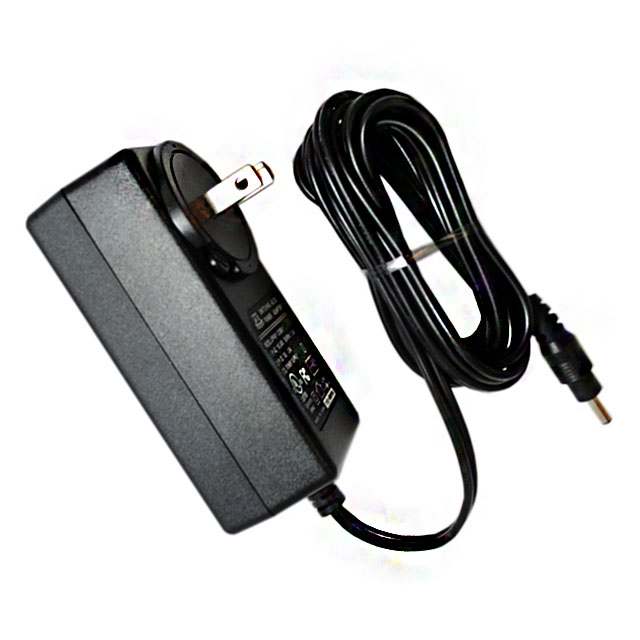

AC/DC WALL MOUNT ADAPTER 12V 46W
Deep-Dive with AI
Search across all available documentation for this part.
4842
ObsoleteInspired LED, LLC
AC/DC WALL MOUNT ADAPTER 12V 46W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4842 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 3.8 A |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 1.3 mm, 3.5 mm |
| Power (Watts) | 46 W |
| Region Utilized | North America |
| Size / Dimension [x] | 3.8 " |
| Size / Dimension [x] | 96.5 mm |
| Size / Dimension [y] | 1.8 in |
| Size / Dimension [y] | 45.7 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 25 | $ 0.76 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.47 | |||
| 2500 | $ 0.42 | |||
Description
General part information
4842
12V 46 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Documents
Technical documentation and resources
