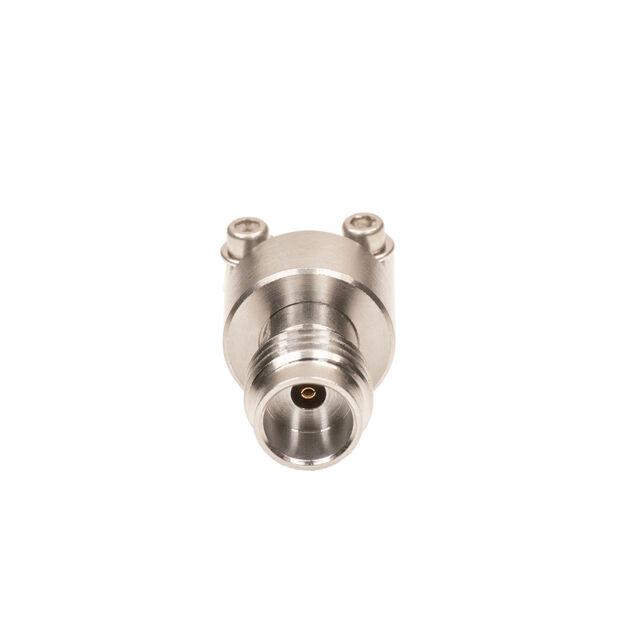

ELF67-001
ActiveSignal Microwave
1.85 MM (70GHZ) EDGE LAUNCH CON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELF67-001
ActiveSignal Microwave
1.85 MM (70GHZ) EDGE LAUNCH CON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELF67-001 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 1.85 mm |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 67 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 80.00 | |
| 10 | $ 62.84 | |||
| 25 | $ 49.78 | |||
| 50 | $ 44.15 | |||
| 100 | $ 39.17 | |||
| 250 | $ 36.56 | |||
Description
General part information
ELF67-001
1.85mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
