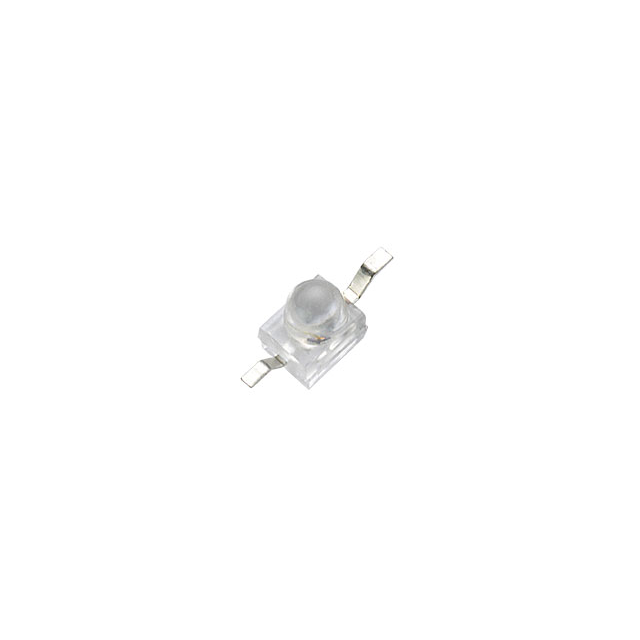

CSM28G2CZ
ActiveChromeLED
LED GREEN CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSM28G2CZ
ActiveChromeLED
LED GREEN CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSM28G2CZ |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 520 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.15 mm |
| Size / Dimension [y] | 2.4 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 570 nm |
| Wavelength - Peak | 572 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
Description
General part information
CSM28G2CZ
Green 570nm LED Indication - Discrete 2V 2-SMD, Z-Bend
