NXN1.25GN25
ActiveTechflex

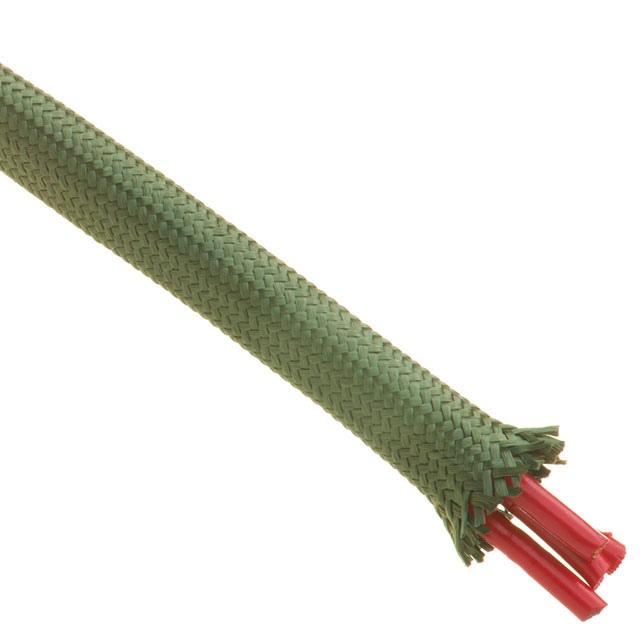

EXPAND SLEEVE 1.25" X 25' GREEN
Deep-Dive with AI
Search across all available documentation for this part.
NXN1.25GN25
ActiveTechflex
EXPAND SLEEVE 1.25" X 25' GREEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NXN1.25GN25 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Green |
| Diameter - Inside, Expanded [diameter] | 1.5 in |
| Diameter - Inside, Expanded [diameter] | 38.1 mm |
| Diameter - Inside, Non-Expanded [diameter] | 1.25 " |
| Diameter - Inside, Non-Expanded [diameter] | 31.75 mm |
| Features | Chemical Resistant, Self Extinguishing, Acid Resistant, Clean Cut, Solvent Resistant |
| Heat Protection | Flame Resistant, Heat Resistant |
| Length [x] | 25 ft |
| Length [x] | 7.62 m |
| Liquid Protection | Gasoline Resistant |
| Material | Polyaramid Polymetaphenylene Isophthalamide, Halogen Free |
| Operating Temperature [custom] | 220 °C, -60 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.016 in |
| Wall Thickness | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 220.27 | |
Description
General part information
NXN1.25GN25
Sleeve X 25.00' (7.62m) Green
Documents
Technical documentation and resources
