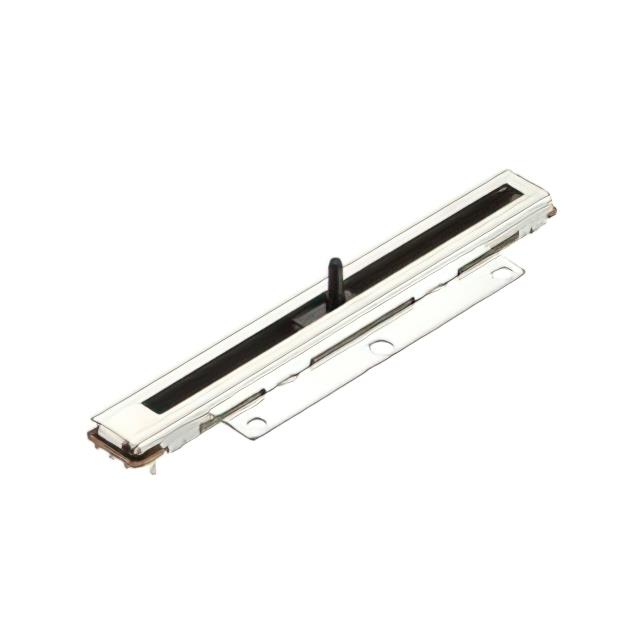

RDC1047A03
ActiveAlps Alpine
RESISTIVE POSITION SENSORS LINEA
Deep-Dive with AI
Search across all available documentation for this part.
RDC1047A03
ActiveAlps Alpine
RESISTIVE POSITION SENSORS LINEA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC1047A03 |
|---|---|
| Actuator Type | Linear Slide |
| For Measuring | Linear Position |
| Linear Range [Max] | 47 mm |
| Linear Range [Max] | 1.85 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Linearity | 0.5 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output | Analog Voltage |
| Package / Case | Module |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 30 % |
| Technology | Resistive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.18 | |
| 10 | $ 3.89 | |||
| 25 | $ 3.45 | |||
| 40 | $ 3.28 | |||
| 80 | $ 3.20 | |||
| 440 | $ 2.68 | |||
| 1000 | $ 2.50 | |||
Description
General part information
RDC1047A03
Resistive Sensor Linear Position Linear Slide
Documents
Technical documentation and resources
No documents available
