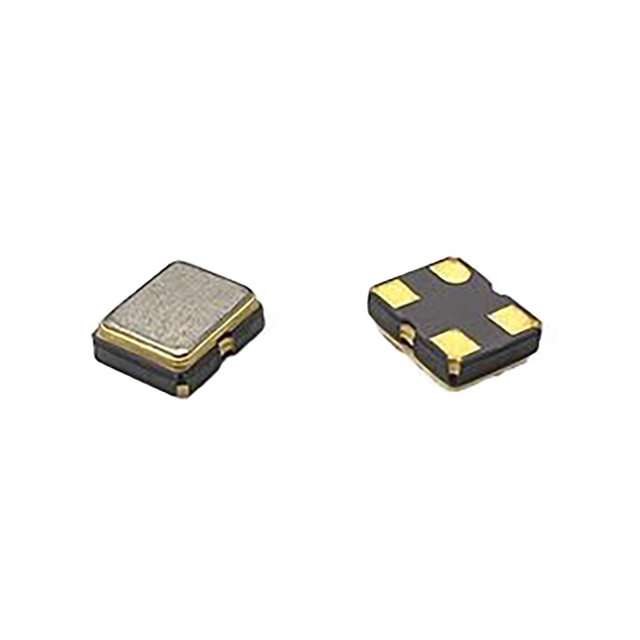

SM5545JEW-33.333MDK
ActivePletronics
PLETRONICS SM55J SERIES IS A QUA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM5545JEW-33.333MDK
ActivePletronics
PLETRONICS SM55J SERIES IS A QUA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM5545JEW-33.333MDK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 7 mA |
| Frequency | 33.333 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | SMD |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 3.2 mm |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 1.84 | |
Description
General part information
SM5545JEW-33.333MDK
33.333 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable SMD 5mm x 3.2mm
