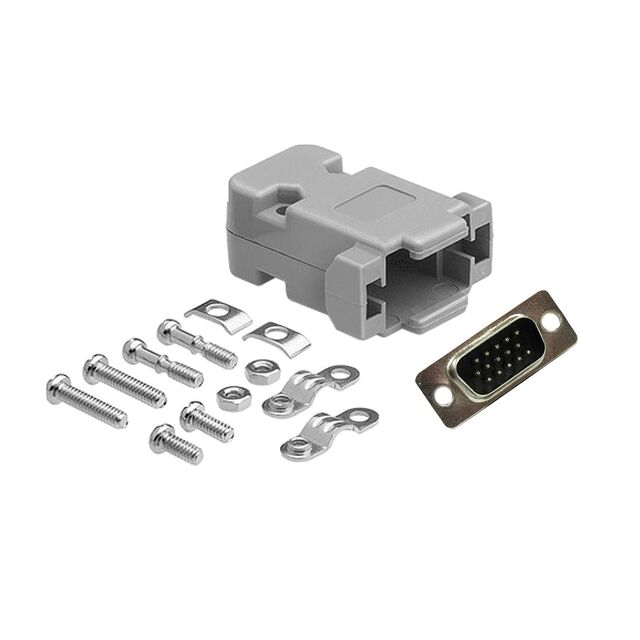

DSC-15HMP-KIT
ActiveCompuCablePlusUSA
D-SUB 15HD M SLDR PLSTC HOOD KIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC-15HMP-KIT |
|---|---|
| Color | Silver |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Features | Assembly |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Primary Material | Plastic |
| Shell Material, Finish | Plastic |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 9.68 | |
| 10 | $ 9.20 | |||
| 50 | $ 8.71 | |||
| 100 | $ 8.23 | |||
Description
General part information
DSC-15HMP-KIT
15 Position D-Sub, High Density Plug, Male Pins Connector
