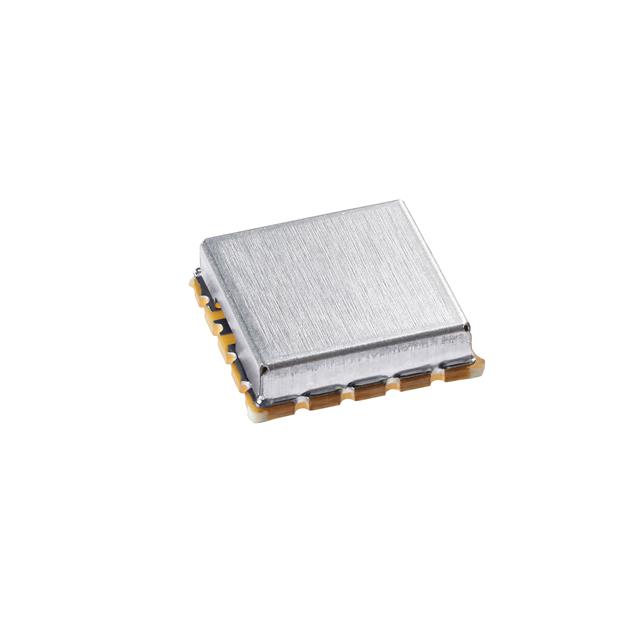

V630ME09-LF
ActiveZ-Communications, Inc.
VCO FREQUENCY 2190 MHZ - 2330 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V630ME09-LF
ActiveZ-Communications, Inc.
VCO FREQUENCY 2190 MHZ - 2330 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V630ME09-LF |
|---|---|
| 2nd Harmonic, Typ (dBc) | -12 dBc |
| Frequency - Center | 2260 MHz |
| Frequency Range [Max] | 2330 MHz |
| Frequency Range [Min] | 2190 MHz |
| Height [z] | 5.59 mm |
| Height [z] | 0.22 in |
| Icc Max | 16 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Phase Noise Typ (dBc/Hz) | -98 dBc/Hz |
| Power (dBm) | 4 dBm |
| Pushing (MHz/V) | 3 MHz/V |
| Voltage - Supply | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 24.95 | |
| 100 | $ 22.50 | |||
Description
General part information
V630ME09-LF
2260MHz Center Frequency Voltage Controlled Oscillator 4 ±4 dBm -12 2nd Harmonic Typ (dBc)
