TBSTCM-520-D-125-10-FT-315-P-AP-LF
ActiveMajor League Electronics
.050 X .050 HEADER
Deep-Dive with AI
Search across all available documentation for this part.
TBSTCM-520-D-125-10-FT-315-P-AP-LF
ActiveMajor League Electronics
.050 X .050 HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBSTCM-520-D-125-10-FT-315-P-AP-LF |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | Flash |
| Length - Overall Pin [x] | 9.7 mm |
| Length - Overall Pin [x] | 0.382 in |
| Length - Post (Mating) [x] | 0.125 in |
| Length - Post (Mating) [x] | 3.175 mm |
| Length - Stack Height [x] | 0.315 in |
| Length - Stack Height [x] | 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.46 | |
Description
General part information
TBSTCM-520-D-125-10-FT-315-P-AP-LF

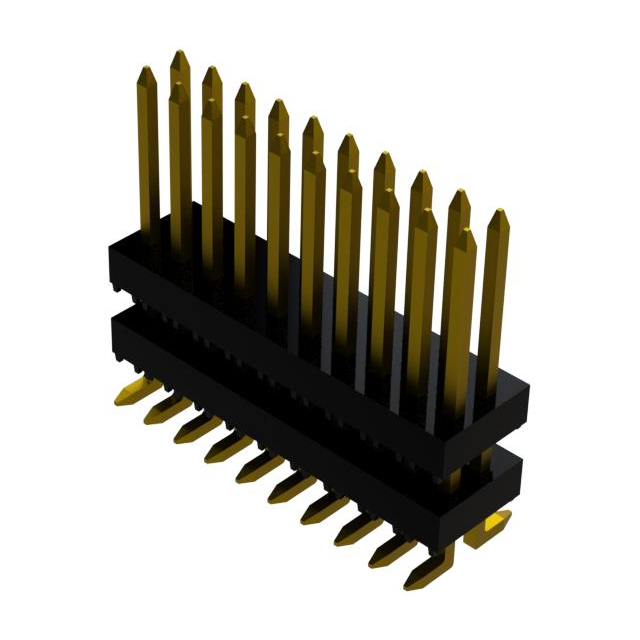

40 Position Header Spacer Connector 0.050" (1.27mm) Gold Surface Mount
Documents
Technical documentation and resources
No documents available
