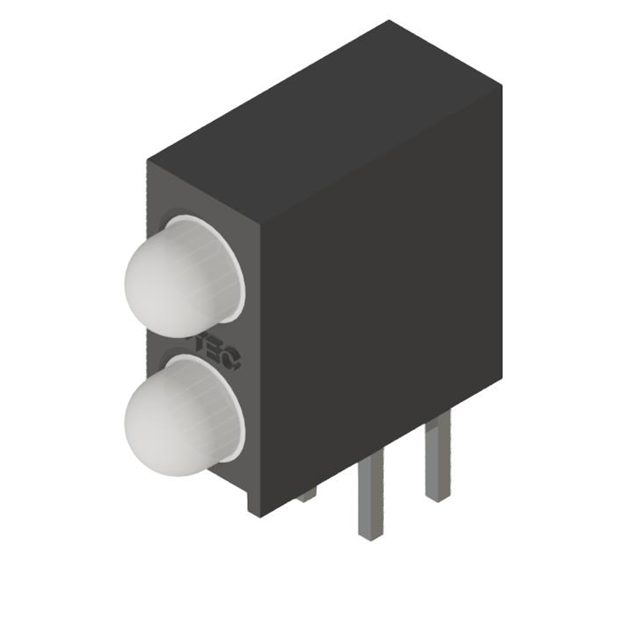

PL309-2GY1301
ActiveP-tec
LED CBI 3MM BI-LVL GRN/YELLOW RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL309-2GY1301
ActiveP-tec
LED CBI 3MM BI-LVL GRN/YELLOW RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL309-2GY1301 |
|---|---|
| Color | Green, Yellow |
| Configuration | 2 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 4 mcd, 7 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 95 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 585 nm, 567 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 1.38 | |||
| 100 | $ 1.01 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.77 | |||
Description
General part information
PL309-2GY1301
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
