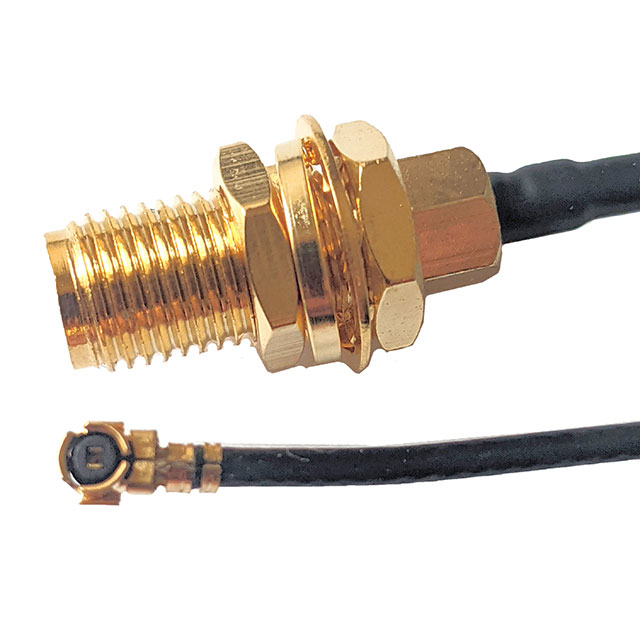

P1CA-SAFBUFP-U113-6
ActiveP1dB Inc
CBL ASSY U.FL-SMA JACK-PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
P1CA-SAFBUFP-U113-6
ActiveP1dB Inc
CBL ASSY U.FL-SMA JACK-PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P1CA-SAFBUFP-U113-6 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 1.1mm Flex |
| Frequency - Max [Max] | 6000 MHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | U.FL (UMCC) to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 13.75 | |
| 25 | $ 13.10 | |||
Description
General part information
P1CA-SAFBUFP-U113-6
Cable Assembly Coaxial U.FL (UMCC) to SMA 1.1mm Flex 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
