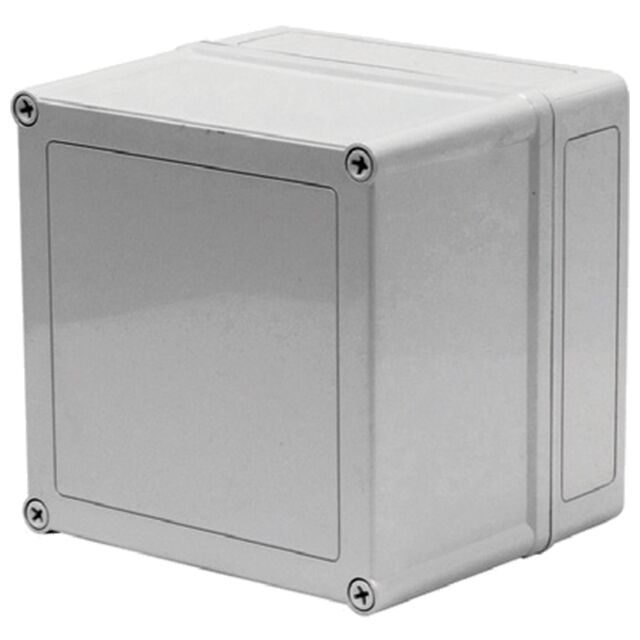

VM775
ActiveHoffman Enclosures, Inc.
ENCLOSURE 7"L X 7"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VM775
ActiveHoffman Enclosures, Inc.
ENCLOSURE 7"L X 7"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VM775 |
|---|---|
| Area (L x W) | 48.9 in² |
| Area (L x W) | 316 cm² |
| Container Type | Enclosure |
| Design | Cover Included |
| Height [z] | 127.51 mm |
| Height [z] | 5.02 in |
| Ratings | NEMA 12, NEMA 4X, NEMA 3, NEMA 3R, IP66, NEMA 13, NEMA 4 |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 7 in |
| Size / Dimension [y] | 177.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 101.74 | |
| 5 | $ 86.97 | |||
| 10 | $ 81.29 | |||
| 25 | $ 80.32 | |||
Description
General part information
VM775
Enclosure Cover Included 7.000" L x 7.000" W (177.80mm x 177.80mm) X 5.020" (127.51mm)
