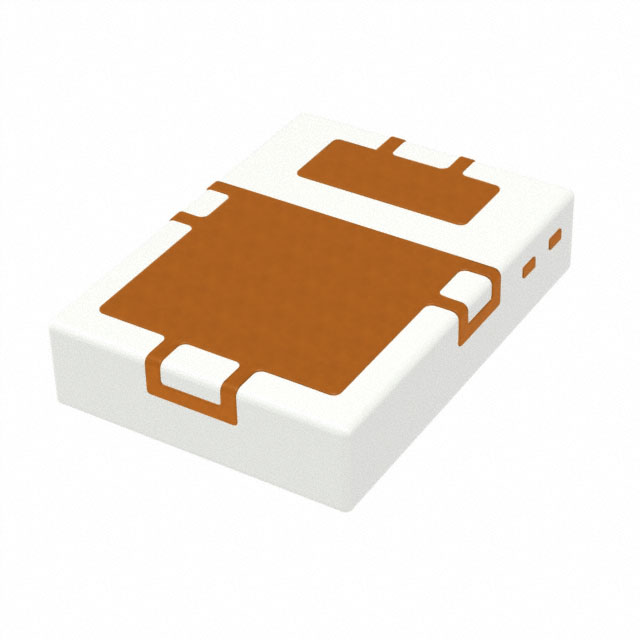

KW DMLN31.SG-7J7K-EBXD46EBZB46-8E8G-ZKW
Activeams-OSRAM USA INC.
LED SYNIOS WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW DMLN31.SG-7J7K-EBXD46EBZB46-8E8G-ZKW
Activeams-OSRAM USA INC.
LED SYNIOS WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW DMLN31.SG-7J7K-EBXD46EBZB46-8E8G-ZKW |
|---|---|
| Color | White |
| Current - Max [Max] | 300 mA |
| Current - Test | 200 mA |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Mounting Type | Surface Mount |
| Package / Case | 1108 |
| Package / Case | 2720 |
| Size / Dimension [x] | 2.75 mm |
| Size / Dimension [x] | 0.108 " |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [diameter] | 18 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KW DMLN31.SG-7J7K-EBXD46EBZB46-8E8G-ZKW
LED Lighting SYNIOS White 3V 200mA 120° 1108 (2720 Metric)
Documents
Technical documentation and resources
