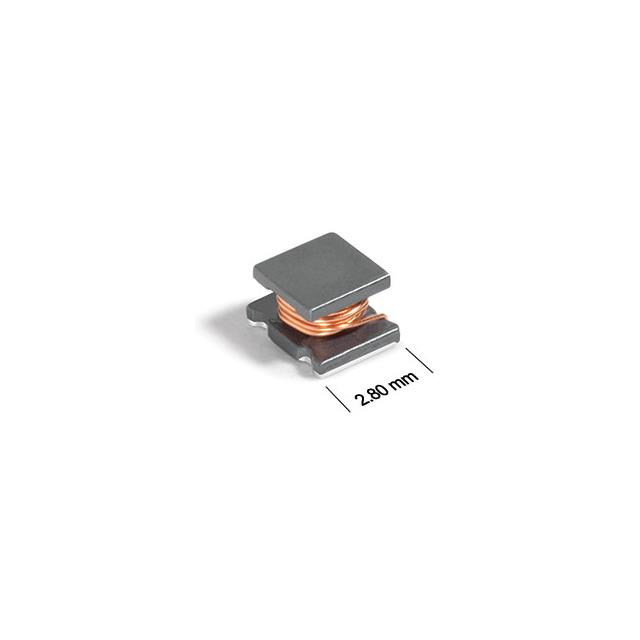

ME3220-473KLC
ActiveCoilcraft
FIXED IND 47UH 450MA 1.8OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ME3220-473KLC
ActiveCoilcraft
FIXED IND 47UH 450MA 1.8OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ME3220-473KLC |
|---|---|
| Current - Saturation (Isat) | 490 mA |
| Current Rating (Amps) | 450 mA |
| DC Resistance (DCR) [Max] | 1.8 Ohm |
| Frequency - Self Resonant | 20.7 MHz |
| Height - Seated (Max) [Max] [z] | 0.094 " |
| Height - Seated (Max) [Max] [z] | 2.4 mm |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.88 | |
| 250 | $ 0.64 | |||
| 500 | $ 0.49 | |||
Description
General part information
ME3220-473KLC
47 µH Unshielded Wirewound Inductor 450 mA 1.8Ohm Max Nonstandard
