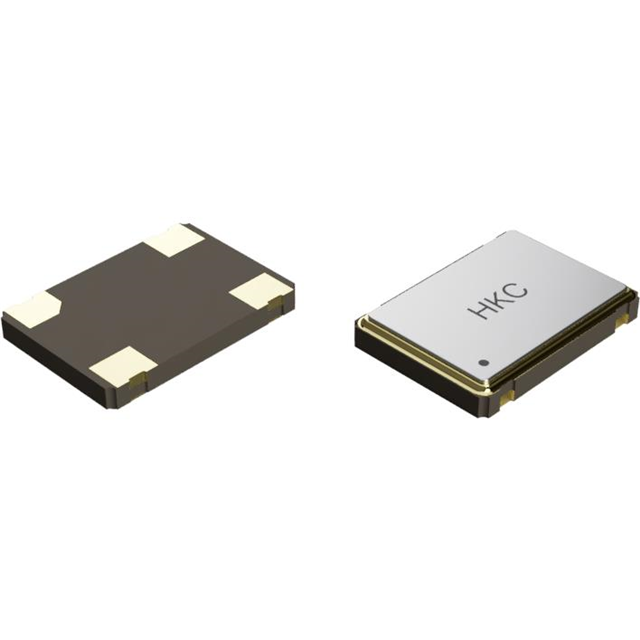

7050XOM1300BMD13CBB-TR
ActiveHKC
XTAL OSC XO 13.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7050XOM1300BMD13CBB-TR
ActiveHKC
XTAL OSC XO 13.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7050XOM1300BMD13CBB-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 7 mA |
| Frequency | 13 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.37 | |
| 3000 | $ 0.36 | |||
| 6000 | $ 0.35 | |||
| 12000 | $ 0.34 | |||
Description
General part information
7050XOM1300BMD13CBB-TR
13 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
