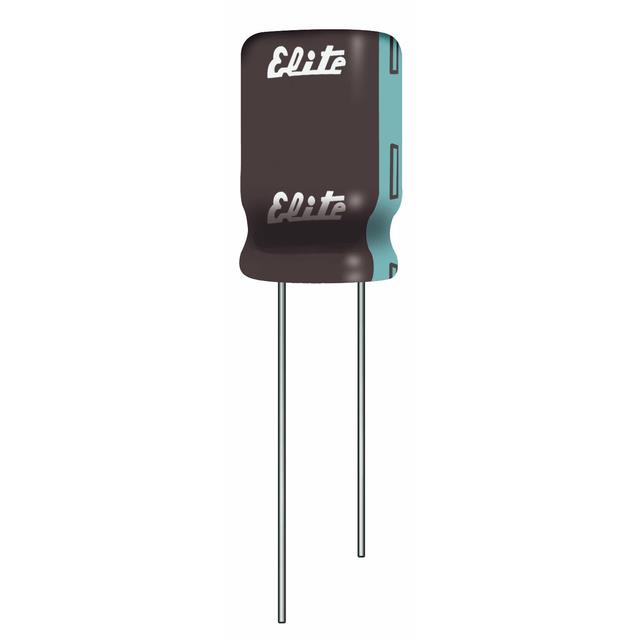

EY1J681MP51225E
ActiveChinsan (Elite)
CAP ALUM 680UF 20% 63V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EY1J681MP51225E
ActiveChinsan (Elite)
CAP ALUM 680UF 20% 63V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EY1J681MP51225E |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Height - Seated (Max) [Max] [z] | 1.043 in |
| Height - Seated (Max) [Max] [z] | 26.5 mm |
| Impedance | 43 mOhms |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 2.2 A |
| Ripple Current @ Low Frequency | 1.1 A |
| Size / Dimension [diameter] | 0.492 in |
| Size / Dimension [diameter] | 12.5 mm |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 0.75 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.52 | |||
| Tape & Box (TB) | 500 | $ 0.42 | ||
| 1000 | $ 0.39 | |||
| 1500 | $ 0.38 | |||
| 2500 | $ 0.36 | |||
| 3500 | $ 0.35 | |||
| 5000 | $ 0.34 | |||
| 12500 | $ 0.32 | |||
| 25000 | $ 0.31 | |||
Description
General part information
EY1J681MP51225E
680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
