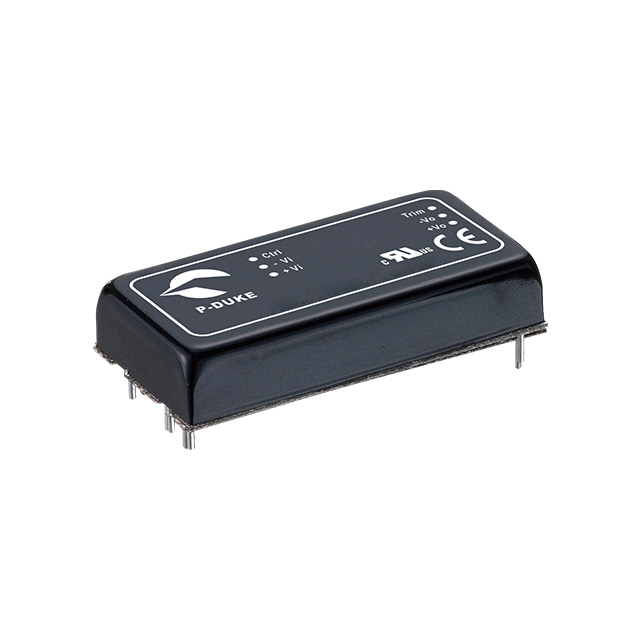

RED40-110D15W
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RED40-110D15W
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RED40-110D15W |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) | 1.333 A |
| Current - Output (Max) | 1.333 A |
| Efficiency | 90.5 % |
| Features | Standby Output, Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 86.79 | |
| 10 | $ 76.28 | |||
| 25 | $ 72.46 | |||
| 50 | $ 69.70 | |||
| 100 | $ 67.05 | |||
Description
General part information
RED40-110D15W
Isolated Module DC DC Converter 2 Output 15V -15V 1.333A, 1.333A 36V - 160V Input
