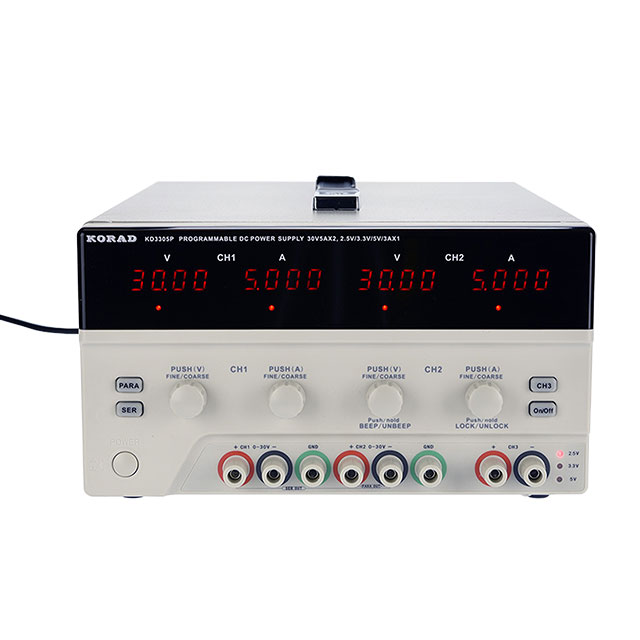

KD3305P
ActiveSRA Soldering Products
KD3305P - PRECISION VARIABLE AD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KD3305P
ActiveSRA Soldering Products
KD3305P - PRECISION VARIABLE AD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KD3305P |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.5% + 20mV, 0.5% + 10mA |
| Current - Output [Max] | 5 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 0.1 %, 3 mA |
| Current Regulation - Load | 10 mA, 0.1 % |
| Display Type | LED |
| Features | RS-232, USB Interface, Adjustable or Fixed Selection Switch, Regulated, Programmable |
| Number of Characters | 4 |
| Number of Outputs | 3 |
| Ripple [Max] | 3 mV rms |
| Ripple [Min] | 2 mV rms |
| Size / Dimension [x] | 10.24 " |
| Size / Dimension [x] | 260 mm |
| Size / Dimension [y] | 220 mm |
| Size / Dimension [y] | 8.661 " |
| Size / Dimension [z] | 6.142 " |
| Size / Dimension [z] | 156 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply [Max] | 220 VAC |
| Voltage - Supply [Min] | 110 VAC |
| Voltage Regulation - Line | 0.01 %, 3 mV |
| Voltage Regulation - Load | 5 mV, 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 339.99 | |
Description
General part information
KD3305P
0 ~ 30VDC Output Bench (AC to DC) Power Supply LED 0 ~ 5A Output Features Adjustable or Fixed Selection Switch, Programmable, Regulated, RS-232, USB Interface
