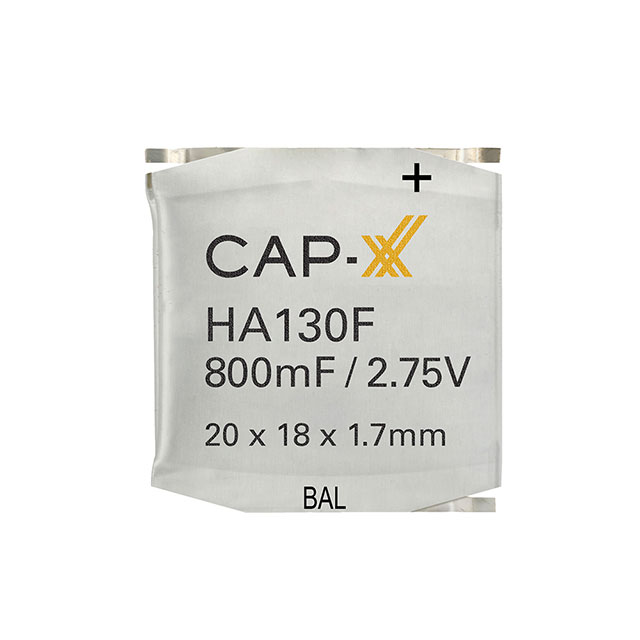

HA130F
ActiveCAP-XX Ltd Supercapacitors
CAP 800MF 2.75V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
HA130F
ActiveCAP-XX Ltd Supercapacitors
CAP 800MF 2.75V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HA130F |
|---|---|
| Capacitance | 800 mF |
| ESR (Equivalent Series Resistance) | 72 mOhms |
| Height - Seated (Max) | 0.073 in |
| Height - Seated (Max) | 1.85 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 0.709 in |
| Size / Dimension [y] | 18 mm |
| Tolerance | 20 % |
| Voltage - Rated | 2.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 100 | $ 10.00 | |||
| 200 | $ 9.34 | |||
| 500 | $ 8.21 | |||
| 1000 | $ 7.08 | |||
| 2000 | $ 5.94 | |||
Description
General part information
HA130F
800 mF (EDLC) Supercapacitor 2.75 V 2-SMD 72mOhm
Documents
Technical documentation and resources
No documents available
