Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-IG42-VDC-84 |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Gear Reduction Ratio | 84 |
| Length - Shaft and Bearing [x] | 5.272 in |
| Length - Shaft and Bearing [x] | 133.9 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 1.378 in |
| Mounting Hole Spacing | 35 mm |
| Power - Rated | 45 W |
| RPM | 76 RPM |
| Termination Style | Terminals |
| Torque - Max Momentary (oz-in / mNm) | 9806.65 mNm |
| Torque - Max Momentary (oz-in / mNm) | 1388.7 oz-in |
| Torque - Rated (oz-in / mNm) | 3334.26 mNm |
| Torque - Rated (oz-in / mNm) | 472.2 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 295.96 | |
| 10 | $ 244.96 | |||
| 100 | $ 173.11 | |||
Description
General part information
MOT-IG42-VDC-84

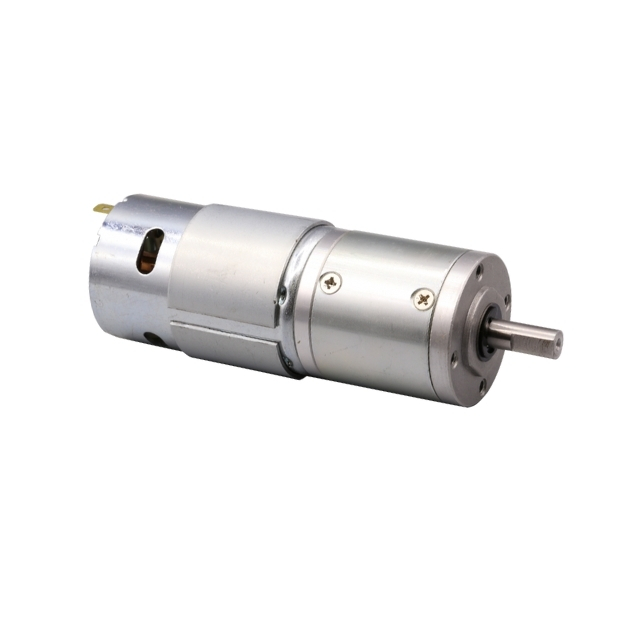

Brushed DC Motor Gearmotor 76 RPM 45W 12VDC
