TF-1LG-012-RS5N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TF-1LG-012-RS5N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TF-1LG-012-RS5N |
|---|---|
| Bend Radius [radius] | 134.62 mm |
| Cladding Diameter [diameter] | 125 µm |
| Core Diameter [diameter] | 62.5 µm |
| Jacket (Insulation) Diameter [diameter] | 13.46 mm |
| Jacket (Insulation) Diameter [diameter] | 0.53 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Standard |
| Tensile Strength | 81.6 kg |
| Type | Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.15 | |
Description
General part information
TF-1LG-012-RS5N

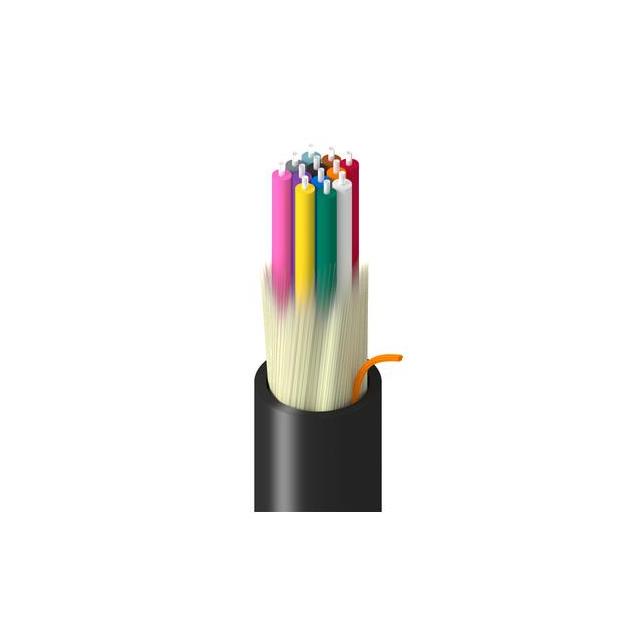

Fiber Optic Cable Black Multimode 125µm
