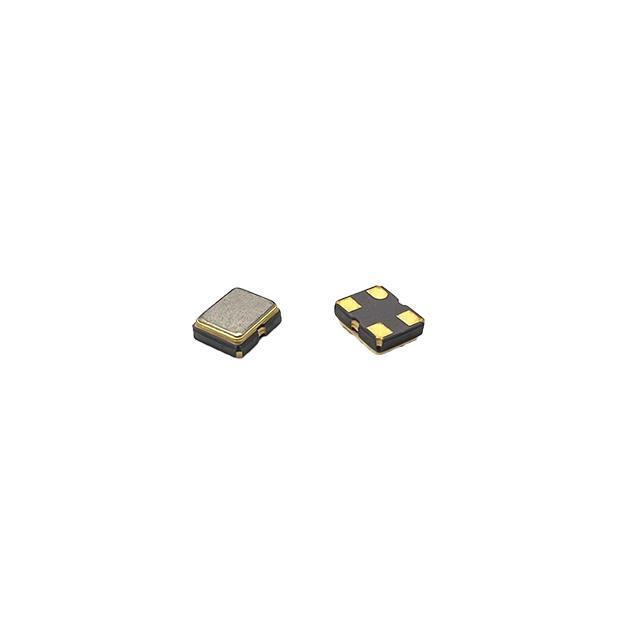

UCG4031035JK005000-38.4MDK
ActivePletronics
TCXO OSCILLATORS 2016 4-SMD TCXO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCG4031035JK005000-38.4MDK
ActivePletronics
TCXO OSCILLATORS 2016 4-SMD TCXO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCG4031035JK005000-38.4MDK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 0.23 µA |
| Current - Supply (Max) [Max] | 3 mA |
| Frequency | 38.4 MHz |
| Frequency Stability | 0.5 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 1.91 | |
| 500 | $ 1.83 | |||
| 750 | $ 1.79 | |||
| 1250 | $ 1.73 | |||
| 1750 | $ 1.70 | |||
| 2500 | $ 1.66 | |||
| 6250 | $ 1.57 | |||
Description
General part information
UCG4031035JK005000-38.4MDK
38.4 MHz TCXO Clipped Sine Wave Oscillator 3.3V Enable/Disable 4-SMD, No Lead Exposed Pad
