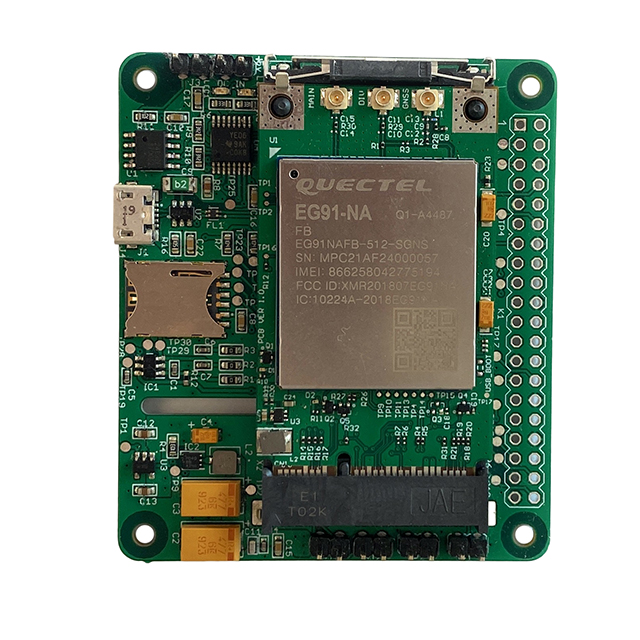

EG91NAMPCIEHATR10
Active5G HUB
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Search across all available documentation for this part.
EG91NAMPCIEHATR10
Active5G HUB
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EG91NAMPCIEHATR10 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 42 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Protocol | HSPA+, GPRS, EDGE, HSUPA, GNSS, Galileo, UMTS, GSM, GPS, GLONASS, WCDMA |
| RF Family/Standard | Cellular, Navigation |
| Serial Interfaces | I2C, PCM, UART, USB, ADC |
| Utilized IC / Part | EG91 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 99.00 | |
| 10 | $ 95.00 | |||
| 20 | $ 90.00 | |||
Description
General part information
EG91NAMPCIEHATR10
Cellular, Navigation EDGE, GPRS, GSM, Galileo, GLONASS, GPS, GNSS, HSPA+, HSUPA, UMTS, WCDMA Transceiver Module Antenna Not Included Surface Mount
