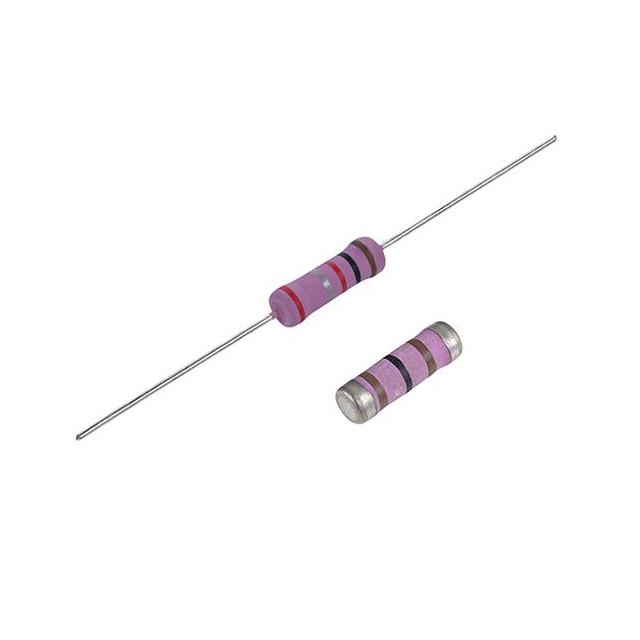

OUM181KE
ActiveOhmite
FIXED RESISTOR, CERAMIC COMPOSITION, 1W, 180OHM, 400V, 10% +/-TOL, -3000PPM/CEL, SURFACE MOUNT, 5718, MELF
Deep-Dive with AI
Search across all available documentation for this part.
OUM181KE
ActiveOhmite
FIXED RESISTOR, CERAMIC COMPOSITION, 1W, 180OHM, 400V, 10% +/-TOL, -3000PPM/CEL, SURFACE MOUNT, 5718, MELF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OUM181KE |
|---|---|
| Composition | Ceramic |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 1 W |
| Resistance | 180 Ohms |
| Size / Dimension [diameter] | 0.181 in |
| Size / Dimension [diameter] | 4.6 mm |
| Size / Dimension [x] | 0.575 in |
| Size / Dimension [x] | 14.6 mm |
| Temperature Coefficient | -3000 ppm/°C |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.11 | |
| 10 | $ 1.93 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.31 | |||
| 500 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 3.11 | ||
| 10 | $ 1.93 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.31 | |||
| 500 | $ 1.06 | |||
| Tape & Reel (TR) | 1000 | $ 0.98 | ||
| 3000 | $ 0.89 | |||
| 5000 | $ 0.87 | |||
Description
General part information
OUM181KE
180 Ohms ±10% 1W Chip Resistor Nonstandard Ceramic
Documents
Technical documentation and resources
No documents available
