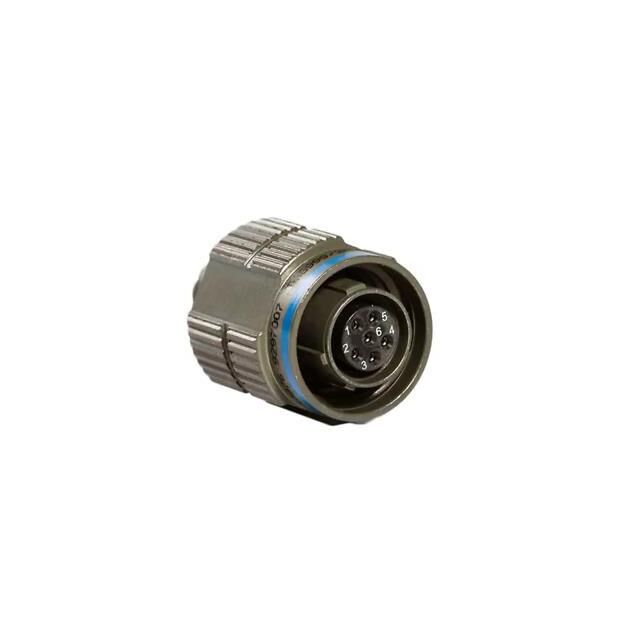

D38999/20JG35JNL
ActiveSouriau-Sunbank by Eaton
D38999 SER III RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20JG35JNL
ActiveSouriau-Sunbank by Eaton
D38999 SER III RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20JG35JNL |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Size | 22D |
| Contact Type | Crimp |
| Grade | Military |
| Housing Color | Silver |
| Includes | 1 pc - 1 Insert Shell |
| Ingress Protection | Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 79 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Cadmium |
| Shell Material | Composite |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 21 |
| Shell Size, MIL | G |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.40 | |
| 10 | $ 76.34 | |||
| 25 | $ 73.52 | |||
| 50 | $ 68.44 | |||
| 100 | $ 64.03 | |||
| 250 | $ 59.25 | |||
| 500 | $ 56.71 | |||
| 1000 | $ 54.38 | |||
Description
General part information
D38999/20JG35JNL
79 Position Circular Connector Receptacle Housing Panel Mount
