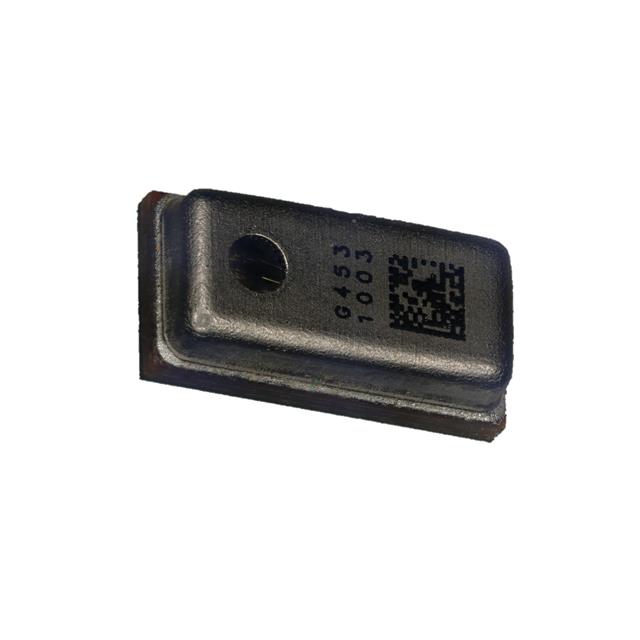

SD33OT261-003
ActiveGoertek Microelectronics Inc.
MIC MEMS DIGITAL -26DB OMNI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD33OT261-003
ActiveGoertek Microelectronics Inc.
MIC MEMS DIGITAL -26DB OMNI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD33OT261-003 |
|---|---|
| Current - Supply | 750 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 8 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Port Location | Top |
| S/N Ratio | 64 dB |
| Sensitivity | -26 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 1.8 V |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.99 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
| 5000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 0.99 | ||
| 10 | $ 0.81 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
| 5000 | $ 0.48 | |||
| Tape & Reel (TR) | 10000 | $ 0.48 | ||
Description
General part information
SD33OT261-003
100 Hz ~ 8 kHz Microphone MEMS (Silicon) 1.62 V ~ 3.6 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads
