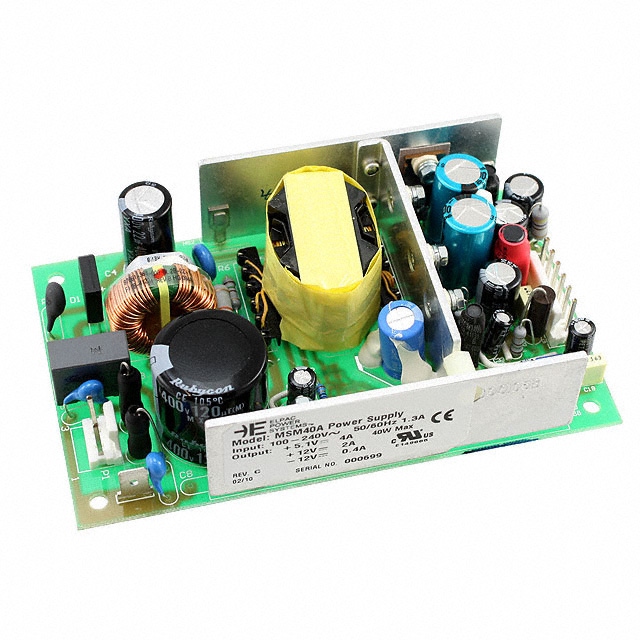

MSM40A
ObsoleteInventus Power
AC/DC CONVERTER 5.1V +/-12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSM40A
ObsoleteInventus Power
AC/DC CONVERTER 5.1V +/-12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSM40A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 4 A |
| Current - Output 2 | 2 A |
| Current - Output 3 | 400 mA |
| Efficiency | 73 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 35.1 mm |
| Size / Dimension [z] | 1.38 in |
| Type | Open Frame |
| Voltage - Output 1 | 5.1 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MSM40A
Open Frame AC DC Converters 3 Output 5.1V 12V -12V 85 ~ 264 VAC Input
