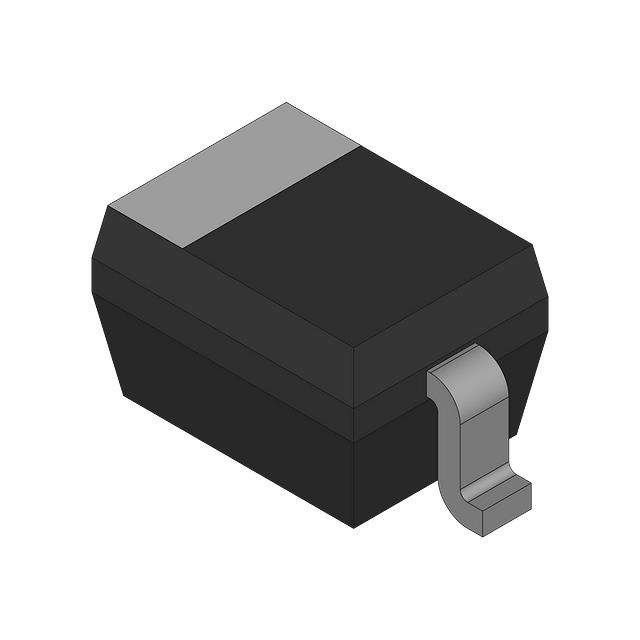

MMSZ5231AS_R1_00001
ActivePanjit International Inc.
SURFACE MOUNT SILICON ZENER DIOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMSZ5231AS_R1_00001
ActivePanjit International Inc.
SURFACE MOUNT SILICON ZENER DIOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMSZ5231AS_R1_00001 |
|---|---|
| Current - Reverse Leakage @ Vr | 5 ÁA |
| Impedance (Max) (Zzt) [Max] | 17 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | SOD-323 |
| Tolerance | 1.96 % |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.18 | ||
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| Tape & Reel (TR) | 5000 | $ 0.03 | ||
| 10000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 25000 | $ 0.03 | |||
| 35000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
MMSZ5231AS_R1_00001
Zener Diode 5.1 V 200 mW ±1.96% Surface Mount SOD-323
