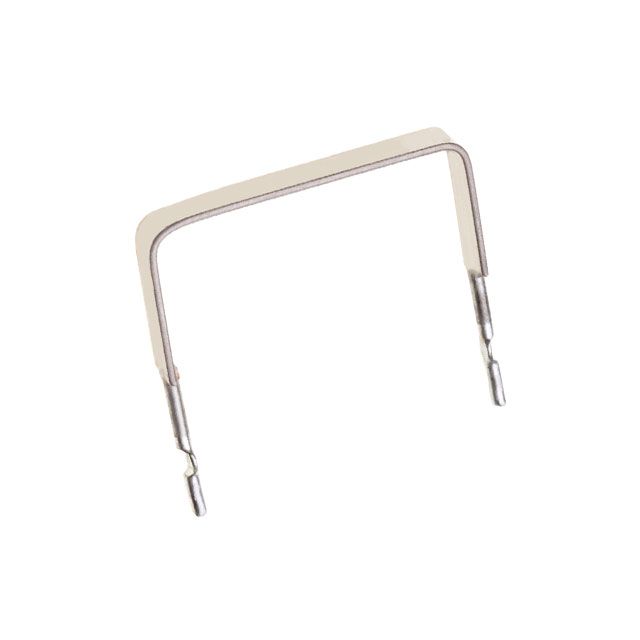

MSR5-0R025F1
ActiveRiedon products by Bourns
RES 0.025 OHM 1% 5W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
MSR5-0R025F1
ActiveRiedon products by Bourns
RES 0.025 OHM 1% 5W RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSR5-0R025F1 |
|---|---|
| Composition | Metal Element |
| Features | Non-Inductive, Flame Proof, Current Sense, Safety, Pulse Withstanding |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 275 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Radial |
| Power (Watts) | 5 W |
| Resistance | 25 mOhms |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [x] | 0.799 " |
| Size / Dimension [y] | 0.067 in |
| Size / Dimension [y] | 1.7 mm |
| Temperature Coefficient | 20 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MSR5-0R025F1
25 mOhms ±1% 5W Through Hole Resistor Radial Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety Metal Element
