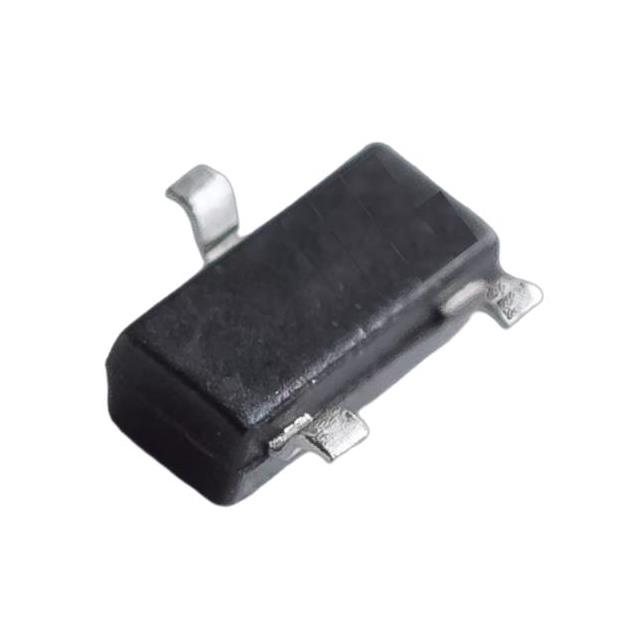

MS40N05

Active

Bruckewell

N-CHANNEL MOSFET,40V,5A,SOT-23

Search across all available documentation for this part.

Active

Bruckewell

N-CHANNEL MOSFET,40V,5A,SOT-23

Technical Specifications

Parameters and characteristics for this part

Specification	MS40N05

Current - Continuous Drain (Id) @ 25°C	5 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	5.5 nC
Input Capacitance (Ciss) (Max) @ Vds	593 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max)	1.25 W
Rds On (Max) @ Id, Vgs	32 mOhm
Supplier Device Package	SOT-23
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 0.19

General part information

N-Channel 40 V 5A (Ta) 1.25W (Ta) Surface Mount SOT-23
