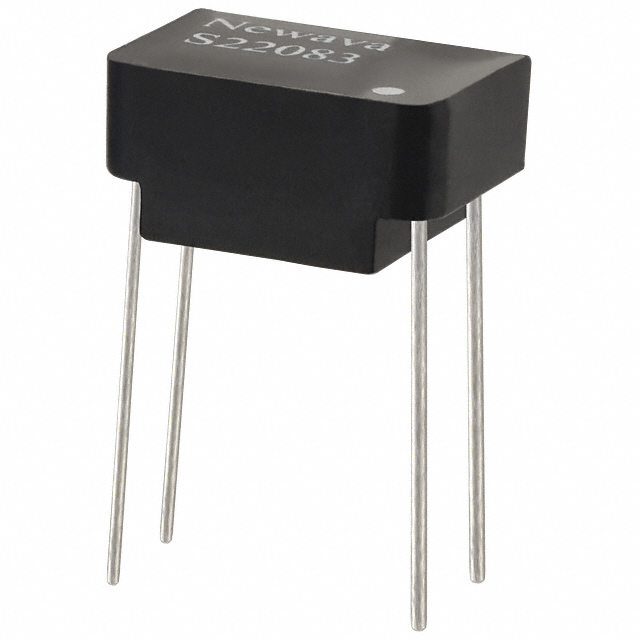

S22083
ActiveNewava Technology Inc.
TRANSFORMER ISOLATION DIG/AUDIO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S22083
ActiveNewava Technology Inc.
TRANSFORMER ISOLATION DIG/AUDIO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S22083 |
|---|---|
| Height - Seated (Max) | 6.35 mm |
| Height - Seated (Max) [Max] | 0.25 in |
| Inductance | 225 µH |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 8.89 mm |
| Size / Dimension [y] | 0.35 " |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.03 | |
| 10 | $ 4.55 | |||
| 25 | $ 4.36 | |||
| 56 | $ 4.21 | |||
| 112 | $ 4.08 | |||
| 280 | $ 3.91 | |||
| 504 | $ 3.81 | |||
| 1008 | $ 3.69 | |||
Description
General part information
S22083
225µH Pulse Transformer 1:1 Through Hole
